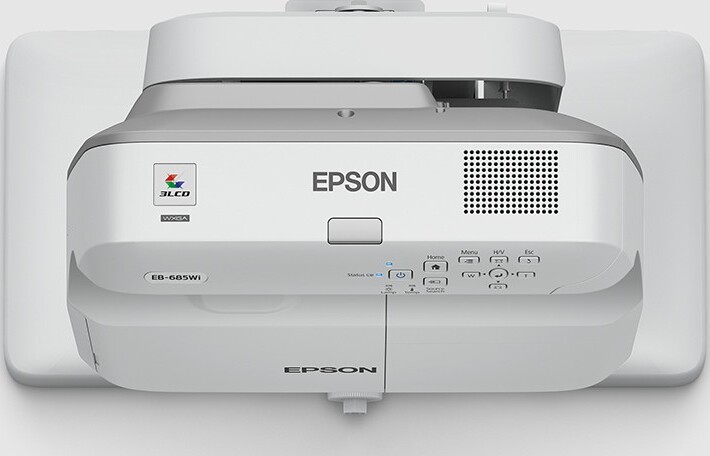

Epson EB-685Wi - V11H741040

Add to favorites
Payment & shipping
More than 100.000 satisfied customers

Promotions and services

Need several units?

Ordering for your team or a rollout? We will gladly prepare a no-obligation quote for you, with a price tailored to your needs.
More information

Choose refurbished

Choose a refurbished device: 100% functional, with warranty and much cheaper than new. View our refurbished range.
More information

Sale

This item is now sharply priced! This promotion is valid for a limited time, so take advantage now!

Product information


Product description

This projector offers superb interactivity thanks to its dual pen capability. With a brightness of 3,500 lumens and HD-ready WXGA resolution, the EB-685Wi's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.

High brightness and image quality
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than competitive projectors1. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.

Dual pen
Epson's interactive pens are now even more responsive and easy to use when annotating directly on screen. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.

Highly reliable
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

Interact and enhance learning
Multi-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.

Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.



Short specifications

  • Projection technology3LCD projection technology
  • Light output3500 ANSI lumens light output
  • ResolutionWXGA (1280x800) resolution
  • Contrast ratio14000:1 contrast ratio

Questions about this product?

How can I help you? This Epson projector displays clear WXGA images in meeting rooms.

Product list changed. Ask again for these products.


Advice and inspiration

Device as a service: complete explanation
We hear more and more about 'device as a service' (DaaS), but what exactly is it? In this blog article we provide a detailed explanation of DaaS and tell you whether it is something for your company.

Specifications

Close all

General

DPN
4067774
Merk
Epson
MPN
V11H741040
EAN
8715946605159
Duurzame Keuze
No

Projector

Keystone correction, vertical
-3 - 3°
Matrix size
1.5 cm (0.59")
Vertical synchronization (min)
0.1 kHz
Vertical synchronization (max)
0.12 kHz
Keystone correction, horizontal
-3 - 3°
White light output
3500 ANSI lumens
Colour light output
3500 ANSI lumens
Projector brightness (economic mode)
2900 ANSI lumens
Number of colours
1.07 billion colours
Zoom type
Auto
Zoom ratio
1.35:1
Contrast ratio (dynamic)
14000:1
Projection distance (tele)
0 - 0.6 m
Projection distance (wide)
0 - 0.4 m
Supported aspect ratios
16:10
Screen size compatibility
1524 - 2540 mm (60 - 100")
Native aspect ratio
16:10
Contrast ratio (typical)
14000:1
Projector native resolution
WXGA (1280x800)
Projection technology
3LCD
Projector brightness
3500 ANSI lumens

Supplier information

Harmonized System (HS) code
85286200

Logistic data

Pallet gross weight
0 g
Pallet weight (UK)
0 g

Light source

Lamp power
250 W
Service life of light source (economic mode)
10000 h
Service life of light source
5000 uur
Light source type
Lamp

Lens system

Throw ratio
0.28 - 0.37:1
Fixed focal length
3.7 mm
Focal length range
3.7 mm
Focus
Manual

Video

Video processing
10 bit
Video colour modes
Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard
Full HD
No
3D
Nee

Design

LED indicators
Yes
Cable lock slot type
Kensington
Cable lock slot
Yes
Placement
Wall
Product colour
White, Grey
Product type
Projector met ultrakorte projectieafstand

Ports & interfaces

Serial interface type
RS-232C
RS-232 ports
1
S-Video inputs quantity
1
AC (power) in
Yes
Microphone in
Yes
Headphone outputs
1
Audio (L/R) in
1
USB 2.0 ports quantity
3
Ethernet LAN (RJ-45) ports
1
DVI port
Nee
Composite video in
1
HDMI ports quantity
3
VGA (D-Sub) ports quantity
3

Network

Ethernet LAN
Y

Storage media

Card reader integrated
No

Performance

Windows operating systems supported
Windows 10, Windows 8, Windows 8.1
Noise level (economic mode)
30 dB
Password protection
Yes
Vertical scan range
100 - 120 Hz
Noise level
35 dB
Market positioning
Education

Characteristics

Compatible operating systems
Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1
Country of origin
Philippines
Interactive input supported
Interactive pen
Interactive
Yes

Multimedia

RMS rated power
16 W
Built-in speaker(s)
Ja

Display

Built-in display
No

Energy

Power consumption (economy mode)
310 W
AC input frequency
50 - 60 Hz
AC input voltage
100-240 V
Power consumption (standby)
0.39 W
Power consumption (typical)
354 W
Power source
AC

Software

Software support
via: AMX, Crestron (Network), Control4

Requirements for the environment

Storage relative humidity (H-H)
10 - 90%
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-10 - 60 °C
Operating temperature (T-T)
5 - 35 °C

Weight and size

Package weight
20 kg
Package height
335 mm
Package depth
730 mm
Package width
490 mm
Height
149 mm
Depth
400 mm
Width
367 mm
Weight
5,9 kg

Contents of the package

Bundled software
Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management
Cables included
AC
Quick start guide
Yes
Manual
Yes
WLAN adapter included
Yes
Remote control included
No

Technical details

USB display function
3 in 1: Image / Mouse / Sound
Products per pallet
12 pc(s)
Pallet gross width
80 cm
Pallet gross length
120 cm
Pallet gross height
15 cm
Quantity per pack
1 pc(s)
Products per pallet layer
2 pc(s)
Quantity per pallet layer (UK)
2 pc(s)
Quantity per pallet (UK)
12 pc(s)
Pallet length (UK)
120 cm
Pallet width (UK)
100 cm
Pallet height (UK)
15 cm
RS-232C
Yes
